Product Advantages

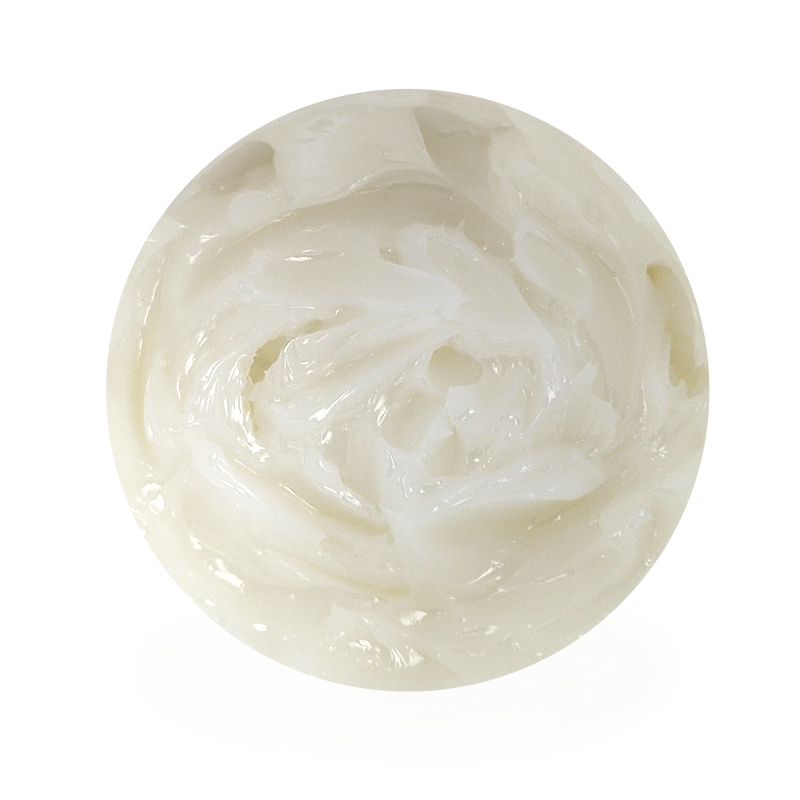

Food grade oil, non-toxic, tasteless, clean, smooth.
Stable high and low temperature performance, high lubricity; Compliance with FDA and NSF.
Meet the American NSF food grade H-1 standard: European Union ROHS and REACH
environmental standards.
Product Features
| Test items | BX-120/0(A) | BX-120/1(A) | BX-120/2(A) | BX-120/3(A) | Test Methods |
| Color | white | white | white | white | IP196 |
| Base oil | Refined mineral oil | Refined mineral oil | Refined mineral oil | Refined mineral oil |
|
| Base oil viscosity at 40℃ | 26cst | 26cst | 26cst | 26cst |
|
| Thickener | Lithium | Lithium | Lithium | Lithium |
|
| Penetration | 355-385 | 310-340 | 265-295 | 220-250 | GB/T 269 |
| Consistency value (NLGI) | 0 | 1 | 2 | 3 | The data is the max operating temperature. The actual data is depend on the test result. |
| Working temperature℃ | -25℃to+130℃ | -25℃to+130℃ | -25℃to+130℃ | -25℃to+130℃ |
|
| Drop point℃ | 200℃ | 200℃ | 200℃ | 200℃ | GB/T 3498 |
| Copper corrosion(100 ℃ / 24Hrs) | qualified | qualified | qualified | qualified | GB/T 7326 |
| Four ball test(40kg/1 Hr/1200rpm/75℃) | 250KG | 250KG | 250KG | 250KG | GB/T 0202 |
Product Usage
Lubrication between all kinds of plastic parts, low speed plastic tooth box muffling.
Lubrication of toys, audio-visual equipment and home appliances.
All kinds of automation equipment lead rod, guide rail, movable rod, CAM, low speed bearing lubrication at room temperature.
Standard models: BX-120/0(A), BX-120/1(A),BX-120/2(A), BX-120/3(A)

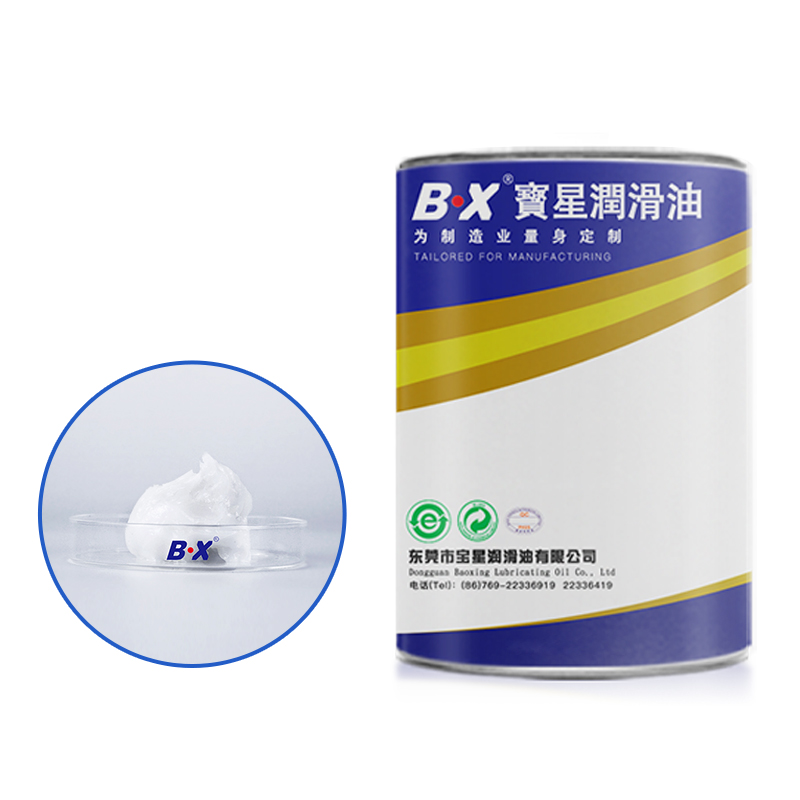

Packing specification: 15KG (plastic barrel),170KG (plastic barrel) Customized according to customer requirements.
