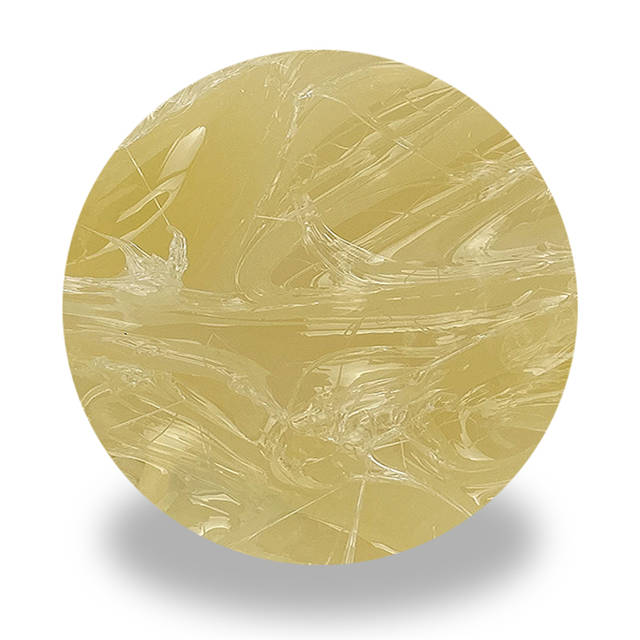

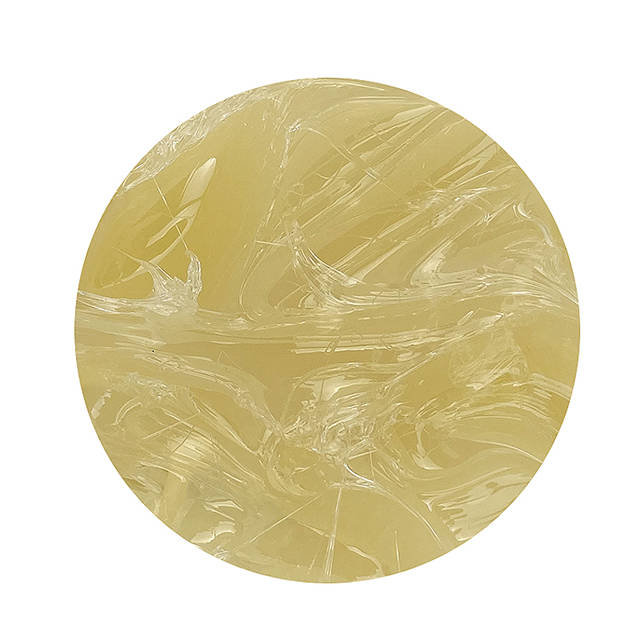

BX-804/F Series Multi-Purpose Silencer Damping Grease

BX-804/F series multi-purpose silencer damping grease This product is made by thickening synthetic oil with inorganic thickening agent, and adding special anti-rust, anti-corrosion additives and structure improver. Excellent damping and insulation, with noise reduction, vibration reduction, insulation, buffering, and increased resistance. Good lubricity and chemical stability and mechanical stability, chemical resistance, water resistance and wear resistance. Extremely long service life. Non-toxic, environmentally friendly, in line with American ASTM-F963, European RoHS and REACH standards.

product description

Product Features

Test itemsBX-804/FBX-804/F(1)Test Methods
ColourTransparent greaseTransparent greaseIP196
Base oilSemi-synthetic oilSemi-synthetic oil
Penetration220-250220-250GB/T 269
Consistency value (NLGI)33
Working temperature ℃-20℃ to +150 ℃-20 ℃ to +150℃
Drop point℃nonoGB/T 3498
Flash point℃300℃300℃
Copper corrosion (100 ℃ / 24Hrs)qualifiedqualifiedGb/t 7326
Four ball test (40kg/1 Hrs /1200rpm/75℃)250KG250KGGB/T 0202
Viscosity levelMedium to high viscosityMedium viscosity

Scope of application

Applicable to all types of large, medium and small gear transmission structures.

Good water resistance, suitable for all kinds of water supplies.

The damping force is moderate and the high and low temperature performance is stable.

It is necessary to dampen various types of rotation or up and down sliding parts of slow vibration resistance.

Damping and lubrication of shafts and audio-visual equipment slow-opening door dampers for rotary potentiometers, inductors, resistors, etc.

Damping and lubrication of active parts of the microscope, telescope, instrument adjustment system, knobs and plastic toys that require slowing, sealing, positioning and fine adjustment


Standard model: BX-804/F, BX-804/F(1)

Specification: 15KG / barrel (plastic barrel)

Storage: indoor, normal temperature, avoid direct sunlight


The above information is for reference only. The actual performance and application are subject to the customer test results. Please pay attention to the test. Please use it after the test.
