Product Features
| Test items |
| BX-804/D | Test Methods |

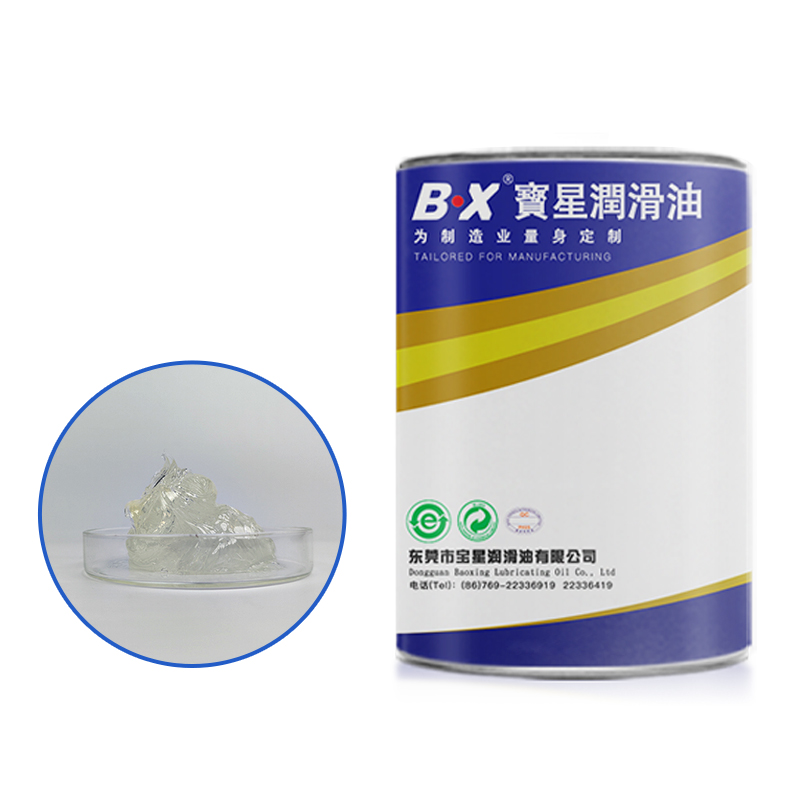

| Colour | ： | Transparent grease | IP196 |
| Base oil | ： | Semi-synthetic oil |
|
| Penetration | ： | 220-250 | GB/T 269 |
| Consistency value (NLGI) | ： | 3 |
|
| Working temperature ℃ | ： | -15℃ to +150℃ |
|
| Drop point ℃ | ： | 250℃ | GB/T 3498 |
| Flash point℃ | ： | 300℃ |
|
| Copper corrosion (100 ℃/ 24Hrs) | ： | qualified | GB/T 7326 |
| Four ball test (40kg/1 Hrs /1200rpm/75℃) | ： | 250KG | GB/T 0202 |
| Viscosity level | ： | Medium to high viscosity |
|
Temperature And Torque Value Changes
| BX-804/D | Ambient temperature | 50℃ | 35℃ | 25℃ | 15℃ | 5℃ | 0℃ | -10℃ | -20℃ |
| Torque value | About 130 | About 135 | About 140 | About 145 | About 150 | About 160 | About 170 | About 175 |
Scope 0f Application
Applicable to all types of large, medium and small gear transmission structures.
Good water resistance, suitable for all kinds of water supplies.
The damping force is moderate and the high and low temperature performance is stable.
It is necessary to dampen various types of rotation or up and down sliding parts of slow vibration resistance.
