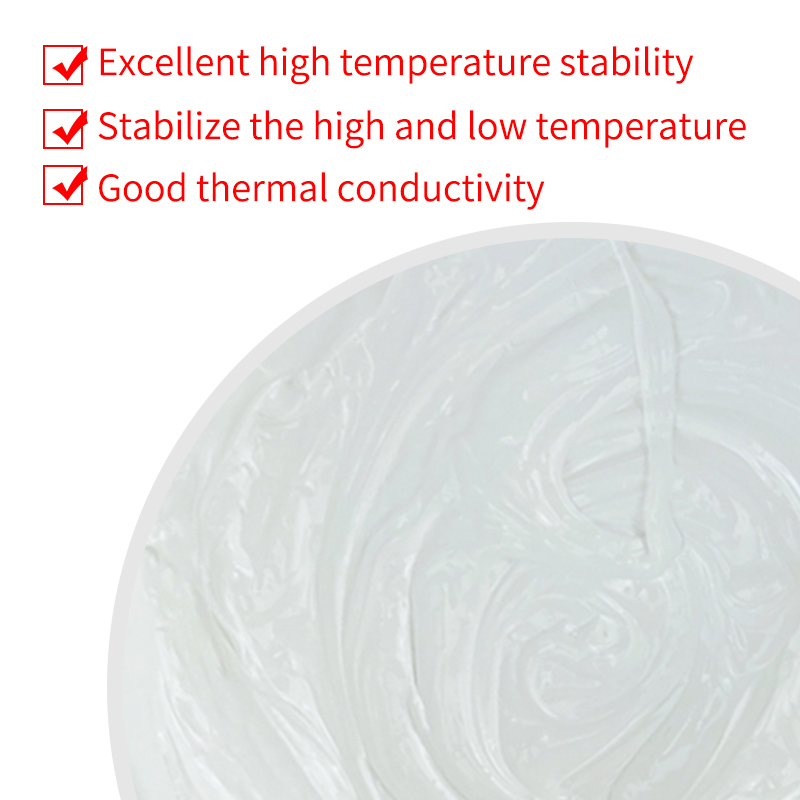

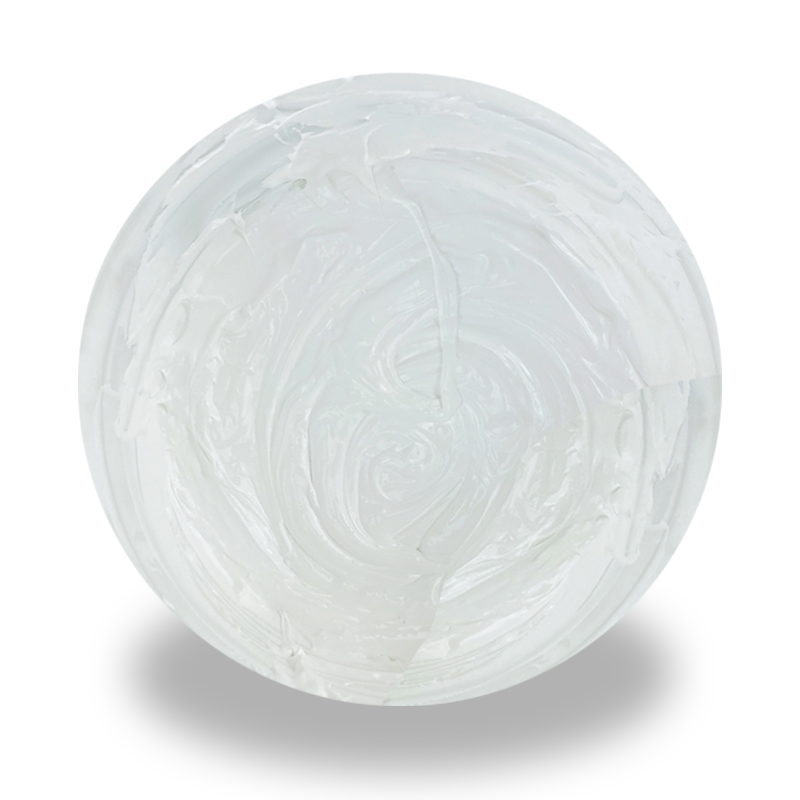

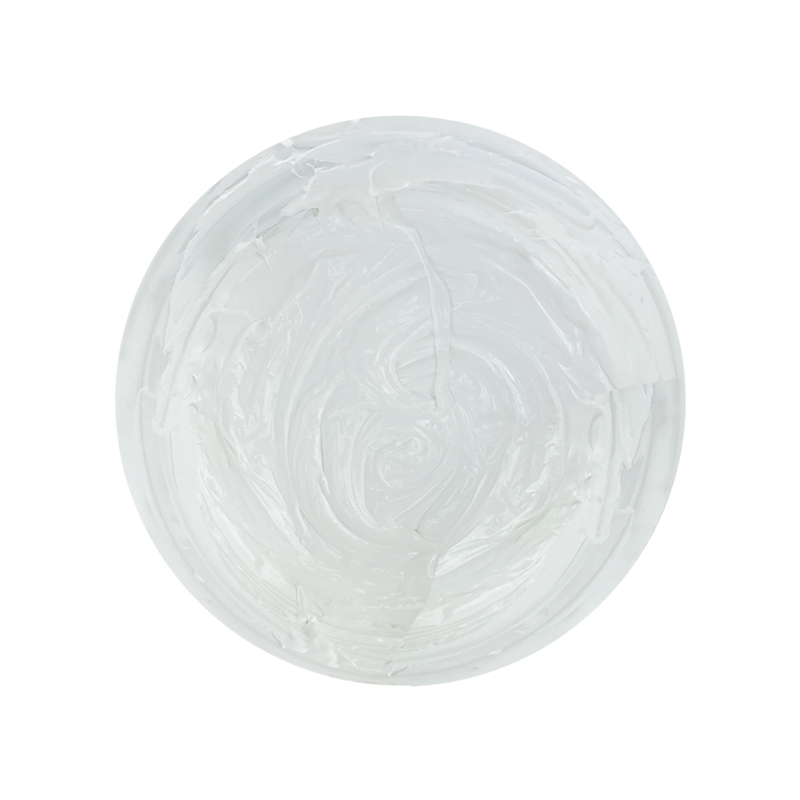

BX-305 thermal grease, pure white thermal grease has good thermal conductivity, mainly acts on the heat transfer medium of electronic components, reduces thermal contact resistance of solid interface, improves interface heat transfer, and is widely applied to various electronic products and electrical appliances. The contact surface between the heating element (power tube, controllable crucible, electric heating stack, etc.) and the heat dissipation device (heat sink, heat sink, housing, etc.) in the device acts as a heat transfer medium.It can increase the heat conduction speed, increase the sensitivity of the heating element, and stabilize the high and low temperature performance.Applicable temperature range -40 ℃ to +200 ℃, in line with US environmental ROHS standards and REACH standards.
Technical Parameters
| Test Items | BX-305 | BX-305/0 | BX-305/3 |
| Colour | white | white | Grayish white |
| Base oil | Oyster sauce | Oyster sauce | Oyster sauce |
| Penetration | 265-295 | 310-340 | 220-250 |
| Consistency value (NKGI) | 2 | 1 | 3 |
| Working temperature℃ | -40℃ to +200℃ | -40℃ to +200℃ | -40℃ to +200℃ |
| Thermal conductivity w/(mk) | 0.84-1 | 0.84-1 | 0.84-1 |
| Specific gravity (25℃) | 2.30 | 2.30 | 2.30 |
| Drop point ℃ | no | no | no |
| Copper corrosion (100 ℃ / 24Hrs) | qualified | qualified | qualified |
Test performance
| test environment | 150℃/72H | 200℃/72H | 300℃/72H |
| Exterior | White normal soft and hard | White slightly hard surface | White yellowish oil |
| Evaporation loss | 0.5% | 1.5% | 2.7% |
| Thermal Conductivity | 1 | 1 | 0.9 |
Standard models: BX-305, BX-305/0, BX-305/3
Specification: 10KG
Storage: indoor, normal temperature, avoid direct sunlight
The above information is for reference only. The actual performance and application are subject to the customer test results. Please pay attention to the test. Please use it after the test.
