Product Advantages
Excellent high temperature stability and oxidation stability; Consistent change with temperature, low volatility at
high temperature; Excellent low temperature start-up performance;
Excellent resistance to water, oxidation and chemical corrosion
Good adhesion, low friction coefficient and high load carrying capacity.
Extremely long service life, after testing, under the test condition of 280 ℃, compared with the high-quality
high-temperature grease thickened with synthetic oil on the market, the service life of SG-803A is more than ten times that of synthetic high-temperature grease; Far more than mineral high temperature grease, and no coke deposits
Conforms to European environmental standards: ROHS and REACH standards and the USA FDA-1-11 standard.
Characteristic
| Test Items | BX-300/E(SG-803A)-1 | BX-300/E(SG-803A)-2 | Test Methods |

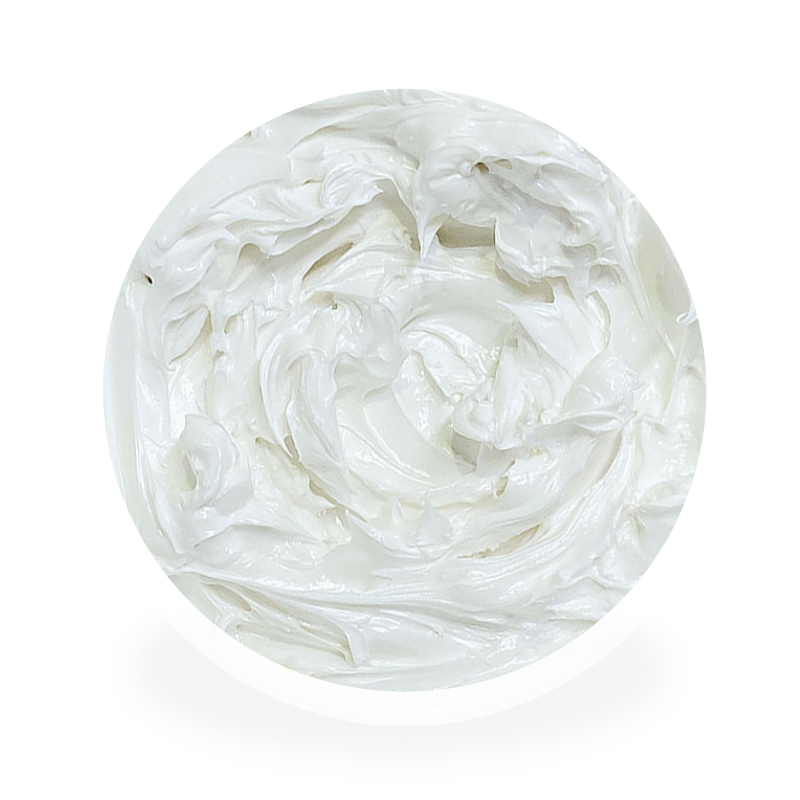

| Color | white | white | IP196 |
| Base oil | Perfluoropolyether | Perfluoropolyether |
|
| Base oil viscosity at 40℃ | 500cst | 500cst |
|
| Thickener | PTFE | PTFE |
|
| Penetration | 310-340 | 265-295 | ASTM D217 |
| Consistency value (NLGI) | 1 | 2 | ASTM D217 |
| Density (g/cm3) at 20℃ | 1.93-1.95 | 1.94-1.96 | ASTM D891 |
| Working temperature℃ | -40℃to +300℃ | -40℃to +300℃ |
|
| Drop point℃ | no | no | ASTM D2265 |
| Copper corrosion (100℃ / 24Hrs) | qualified | qualified | ASTM D130 |
| Steel mesh oil distribution 24h 100℃ | <3.0% | <3.0% | <6% |
| Evaporation loss (120℃, 22 h) | <1.0% | <1.0% |
|
| NSF Code | 166741 | 166741 |
|
Use

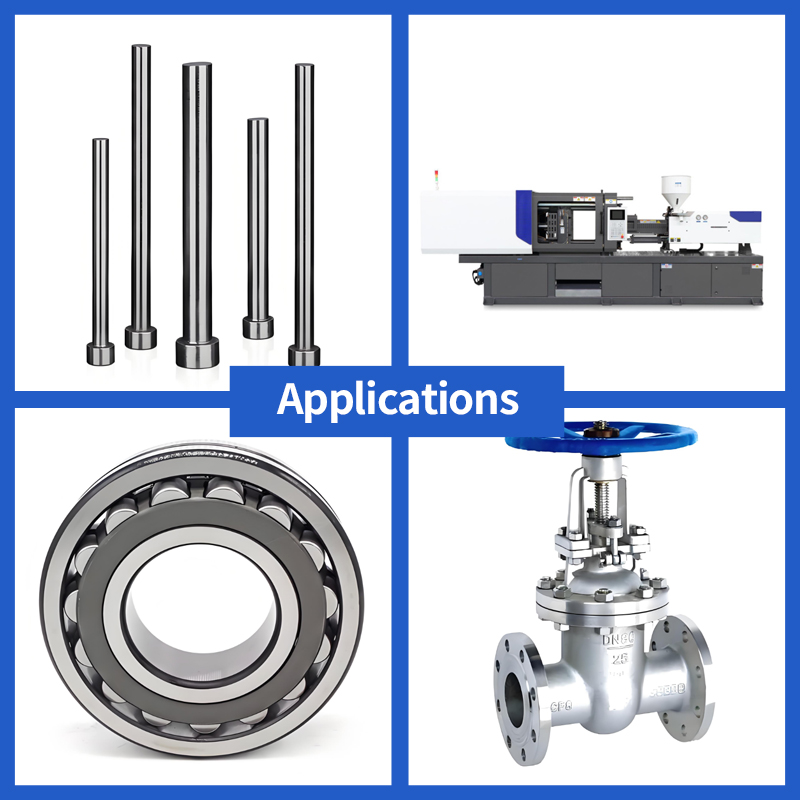

With wide operating temperature, it is especially suitable for lubrication and anti-wear at high temperature.
Automotive wiper motor bearings, lubrication and sealing under strong corrosive environment, in rubber, metal,
plastic and other sliding parts.
Shaft lubrication of roller, transport chain and machinery.
Lubrication and noise reduction of low-speed gearboxes, toys, home appliances, computer accessories, and
electronic motors.
Suitable for lubrication of central systems and various food machinery and transmission structures.
Standard model:BX-300/E(SG-803A)-1, BX-300/E(SG-803A)-2
Specifications: 1KG / barrel, 5KG / barrel, 15KG / barrel (plastic barrel)
Storage: indoor, normal temperature, avoid direct sunlight
